ENVELOPING TWO VOIDS - FALL 04 -
- Haziran 03, 2019
- by
Production of an approximately 30x30x30 cm self-standing 3D composition by organising and controlling solids and voids with primitive forms and ratios:
Primitive Forms:
A) Regular Square Prism 1 _ (x:a, y:a, z:4a)
B) Regular Square Prism 2 _ (x:a, y:a, z:b)
C) Regular Cube _ (2a x 2a x 2a)
D) Regular Cube _ (b x b x b)
E) Regular Rectangular Prism 3 _ (x:b, y:a, z:2b)
F) Regular Rectangular Prism 4 _ (x:b, y:a, z:4b)
Basic Rules for Enveloping Two Voids:
1) Using the given primitive forms as solids, you are going to produce one minor (N) and one major (J) void within the composition.
2) Determine the locations, positions and scale of the primitives in order to produce minor and major voids.
3) N is appx. 300 cm3 and J is appx. 1200 cm3.
4) The two voids (N&J) has to be separated from each other, yet, they have to be interconnected with one another.
5) The voids in the composition should be visible from the outside world.
6) The relationship between primitive forms can be face-to-face, edge-to-edge, pointto-point, wedging, piercing, cradling, etc.
7) Each primitive form should not lose their own identity. You can use sufficient amount of primitive forms.
8) Good craftsmanship is a must. In the second part of the exercise, the following rules were added to introduce transparency and colour:
9) Introduce transparency (then colour) into your design in such a way as to emphasize the minor void (N)
10) You can make max. two planes of each primitive transparent
11) Ratio of transparent planes to total of planes should not exceed %30
12) Document your 3D B&W&G composition for ASS_05a by taking photos and sketches. Make a poster for those (35 x 50 cm.)
Goals to Achieve:
Understanding 3D composition principles
Understanding 3D geometrical relationships
Understanding the limits of solid-void relationship
Development of 3D design skills
Development of good craftsmanship
Ability to control design field
Ability to use design elements
Method:
Forming primitive forms
Designing with solids and voids
Designing with 3D composition
Developing design ideas
Organizing design field
BLACK&WHITE+TRANSPARENCY
POSTER
BLACK&WHITE+ COLOUR
REDO
CENTRALİTY / MOVEMENT
POSTER

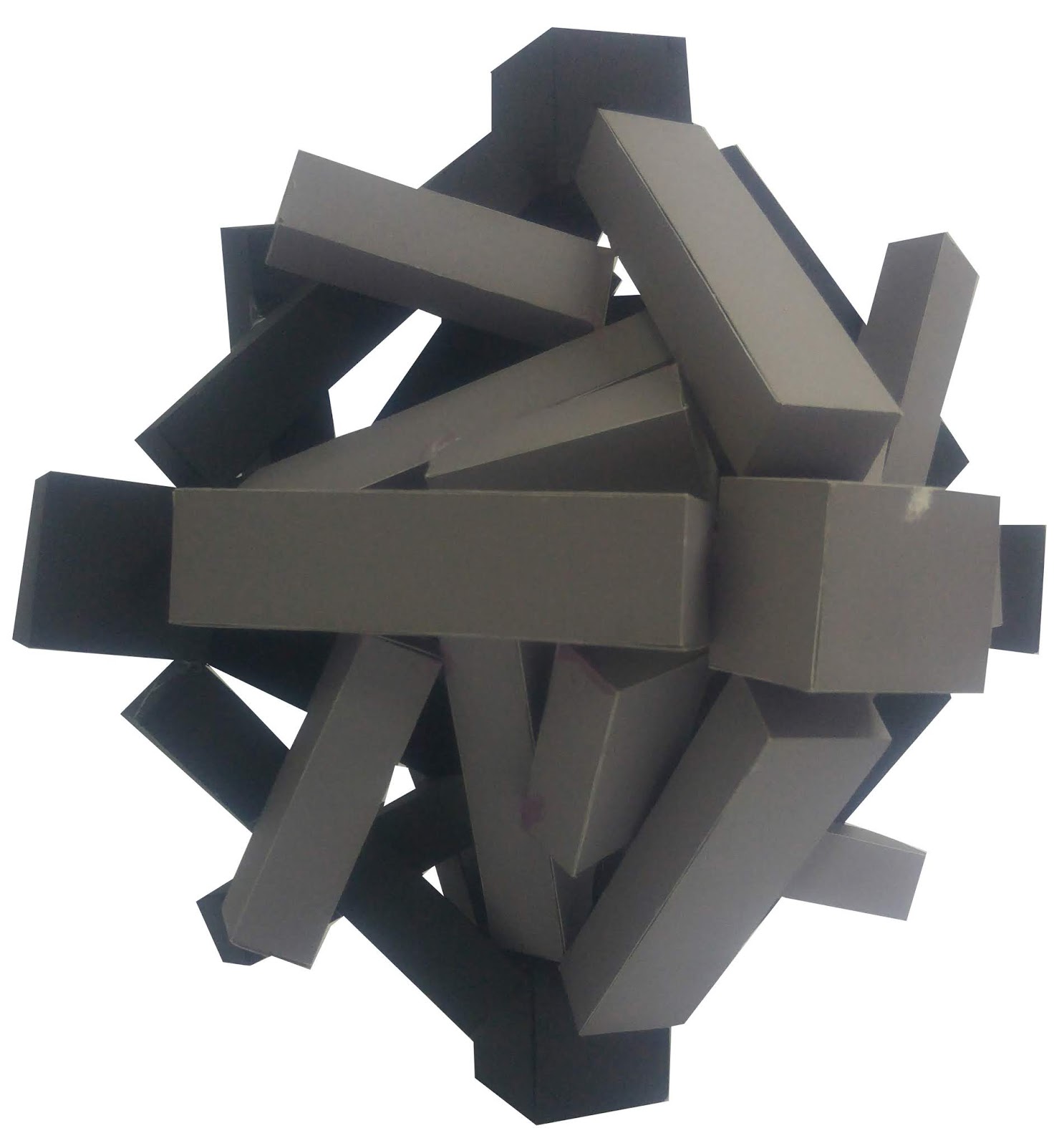

OTHER WORKS
